Speck Model 95 Pump

Request Quote
Pumps

Introduction

This product is part of our custom Systems & Integrations program! This means that we can custom build the perfect product for your needs. Contact us today to get started!

Contact Now

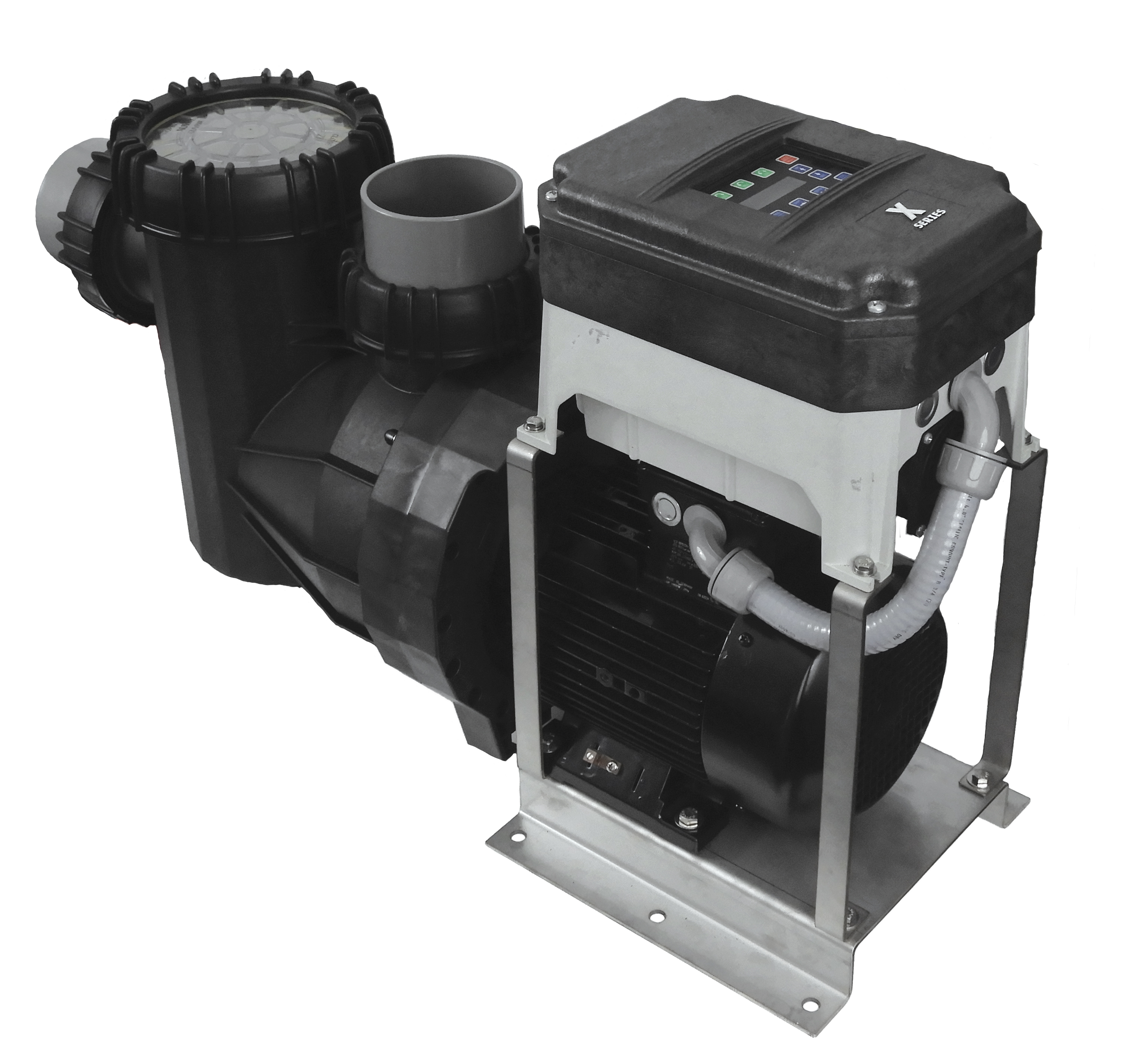

Speck pumps are designed with German engineering and built in America to deliver the highest quality in the market. Speck Model 95 is a high performance plastic commercial pool pump for freshwater. Includes integral basket strainer for easy prime. Equipped with 4" quick disconnect unions for easy installation and maintenance. Heavy duty energy efficient motors available in ODP or TEFC designs. VFD compatible motors are with direct-mount VFD models available. Two year warranty on motor and all pump parts, including normal wear and tear of the mechanical seal. Speck Model 95-X, Energy Efficient Single Speed, Plastic Commercial Pump 7.5HP, Service Factor 1.15, 208-230V, 1 phase, TEFC motor.

Benefits

- Large one-piece housing design with integrated strainer basket for faster pump priming.

- This high performance pump comes complete with our unique (20mm)mechanical shaft seal that allows the pump, if mistreated, to run dry for up to one hour.

- The pump can be used for pool water with a salt concentration of up to 5000 ppm.

- Equipped with 4” quick disconnect unions for easy installation and maintenance. A wrench for unions and lid is included with each pump. Flanges are available on request.

- Available with a heavy duty energy efficient totally enclosed fan-cooled (TEFC) or Open Drip Proof (ODP) motor designs.

- Compatible with many manufactured VFD’s. (Direct mount options available)

- Pump Only:Two year warranty on the motor and all pump parts, including normal wear of the mechanical seal.

- Pump purchased with VFD: Three year warranty on the VFD, pump motor and all pump parts, including normal wear of the mechanical seal.

- Every pump is performance tested before leaving the Speck factory.

High performance plastic commercial pool pumps for freshwater applications. Includes integral basket strainer for easy prime.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
IAS PART #
MODEL
Lamps/Watts
Input Watts
UV-C Output Watts
Overall Length
(inches)
Power Enclosure Dims (inches)
Inlet/Outlet Flange
Amps Max Load 230 VAC
MAX PSI
FLOW (GPM)30 MJ/CM² 90%UVT*
FLOW (GPM)180 MJ/CM² 90%UVT*
240-60
400/1
1/400
440
156
71"
3"
240-0017
400/2
2/800
880
312
71"
16 x 20 x 10
4"
4
145 PSI
248
41
240-0016
400/1
1/400
440
156
71"
16 x 20 x 10
3"
2
145 PSI
114
19
No items found.
ORDER PART #
FILTER MODEL
MODEL DESCRIPTION
MEDIA CAPACITY
PERMABEAD CAPACITY
AREA SQ.FT.
FLOW RATE (GPM) 15-20 gpm/ft2
SHIPPING WEIGHT
223-0014
SM500
20" DIAM, W/O VALVE, 1.5" IN/OUT
210 LBS
2.3 FT3
2.18
32 - 43 GPM
51 LBS

Multiport Valves for SM Filters

223-0039
MPV-2.0
SIDE MOUNT MULTIPORT VALVE FOR SM600,750, 900 FILTER, 2.0"
N/A
N/A
N/A
N/A
11 LBS
223-0003
MPV-1.5
SIDE MOUNT MULTIPORT VALVE FOR SM500 FILTER, 1.5"
N/A
N/A
N/A
N/A
11 LBS
No items found.

Multiport Valves for SM Filters

No items found.
IAS PART #
MODEL
DESCRIPTION
RATED HP
UNION CONNECTORS
SERVICE FACTOR
VOLTAGE SUPPLY
PHASE
MOTOR FRAME
310
1A25
Hayward Lifestar Pump ODP motor, A-Series 1/2 HP, 2" True Union Socket
0.5 HP
2" x 2-1/2"
1.98
115/208-230VAC
1 PHASE
ODP
310-0010
1A3SES13
Hayward Lifestar Pump ODP motor, A-Series 3/4 HP, 2" True Union Socket
0.75 HP
2" x 2-1/2"
1.85
115/208-230VAC
1 PHASE
ODP
310-0009
1A3SES12
Hayward Lifestar Pump ODP motor, A-Series 1/2 HP, 2" True Union Socket
0.5 HP
2" x 2-1/2"
1.98
115/208-230VAC
1 PHASE
ODP
No items found.
